Purpose performance

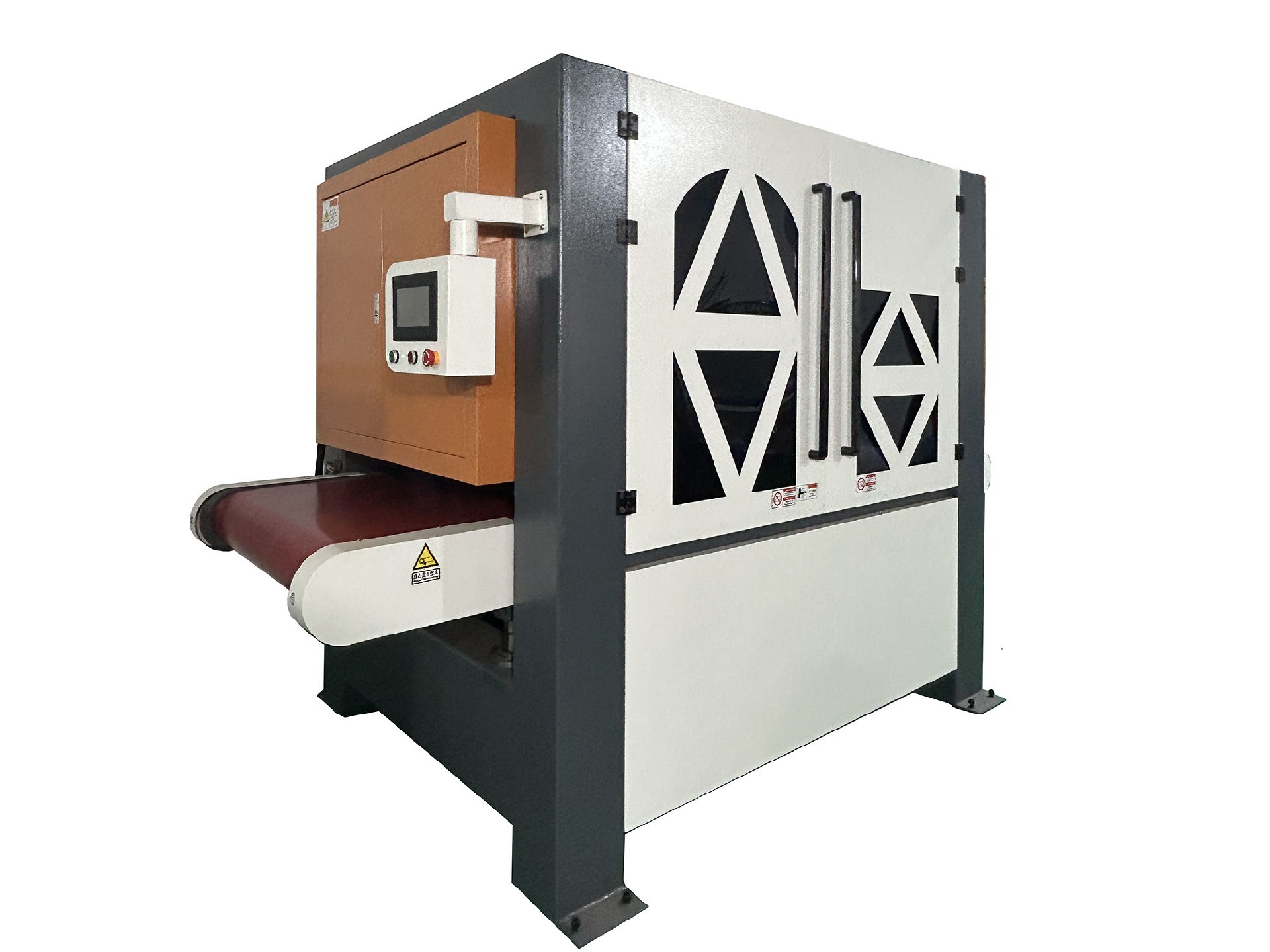

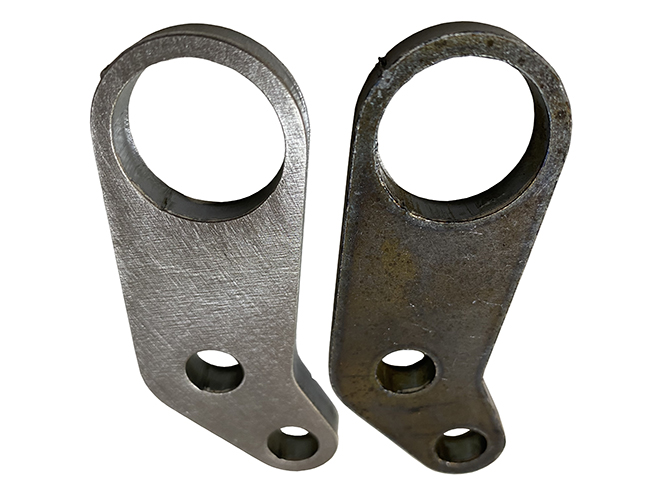

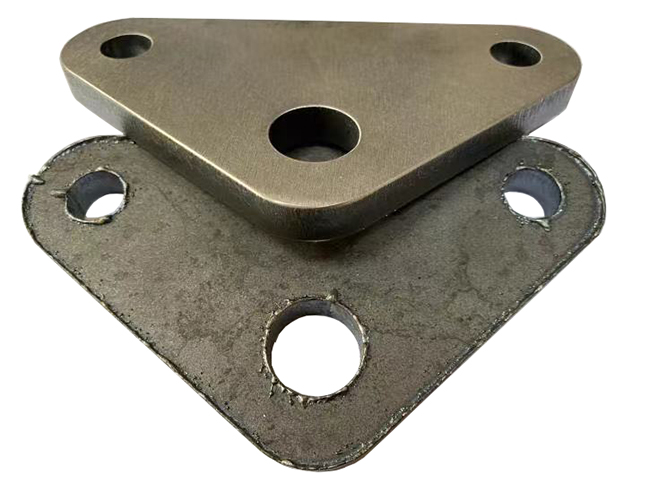

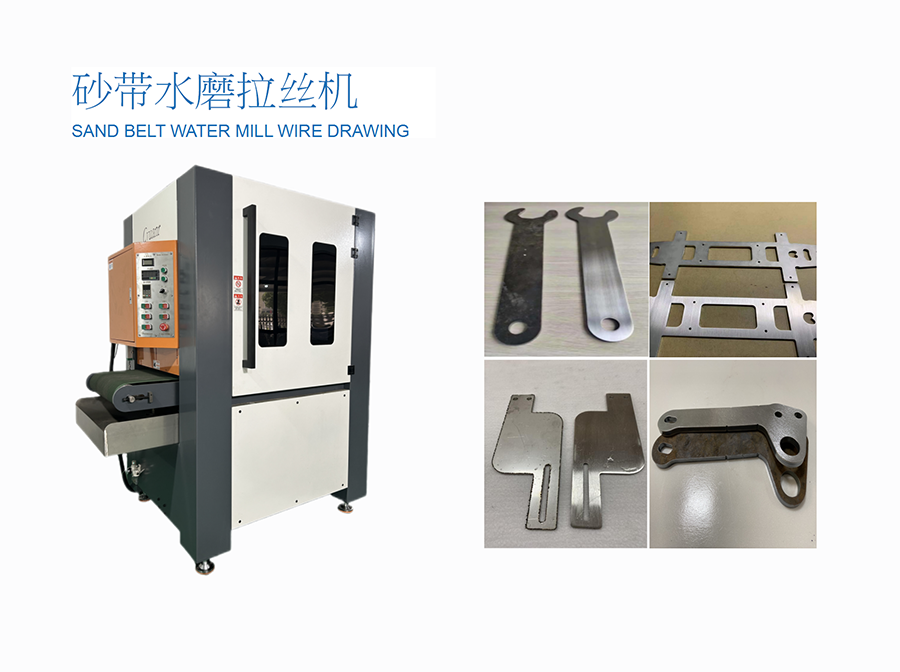

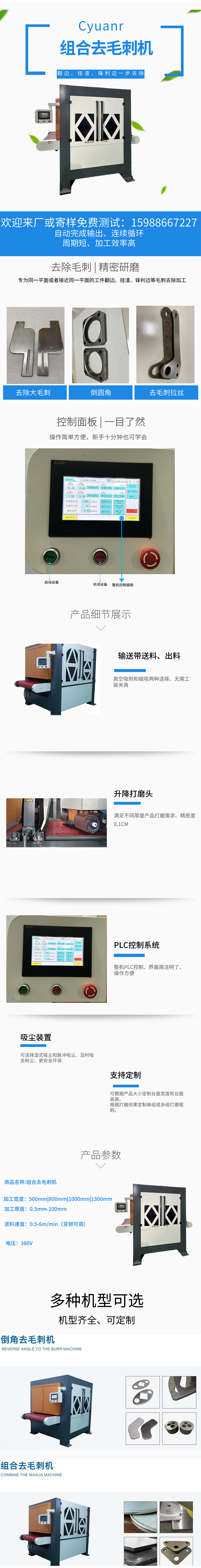

The equipment is specifically designed to remove burrs such as burrs, hanging slag, and sharp edges from workpieces on the same plane or near the same plane, such as cutting burrs with saws, plasma cutting or laser cutting sintering hanging slag, CNC computer gong machining burrs, ordinary punch or CNC stamping sharp edges, etc. Linear machining, with multiple sets of sanding wheels rotating, rotating, and alternating, can truly and uniformly remove burrs and chamfers on the outer surface and hole edges of the parts at once. When deburring the product, the processing time can be set according to the size of the burrs to adjust the conveying speed (the conveying speed is adjusted by the frequency converter). After the product is inserted, the output is automatically completed, with continuous circulation, short cycle time, and high processing efficiency.

Equipment characteristics

1. Pre grinding and surface drawing of large burrs and slag on the workpiece.

2. Equipped with automatic deviation correction and quick replacement of sand belts, it is more efficient

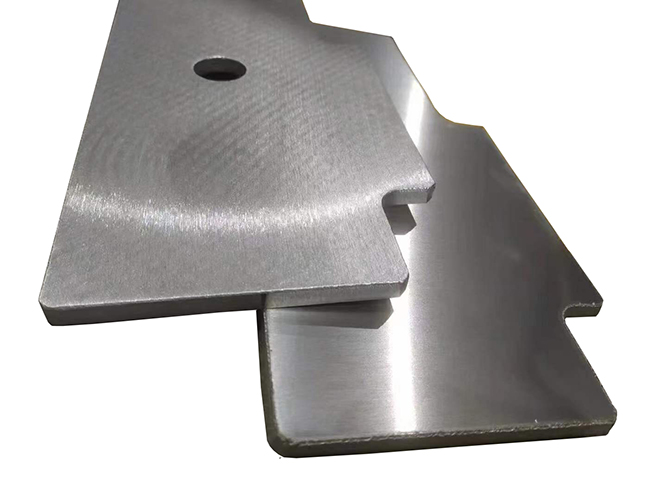

3. Grind the surface contour of the workpiece 360 ° without dead corners to remove burrs, so that the burrs are quickly removed and the chamfer is uniform.

operational principle

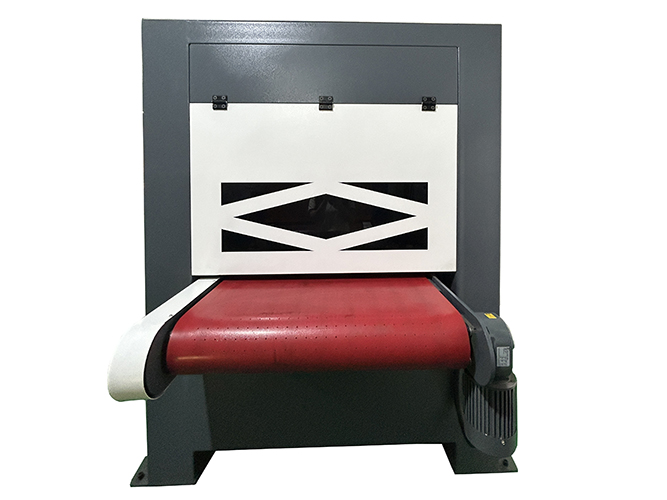

Principle of Wide Belt Sanding Mechanism

The wide abrasive belt is located in the front station of the universal rolling brush, and is driven by a motor to rotate at high speed. It is used for pre-treatment of large burrs, and multiple sets of abrasive belts can be selected for surface wire drawing.

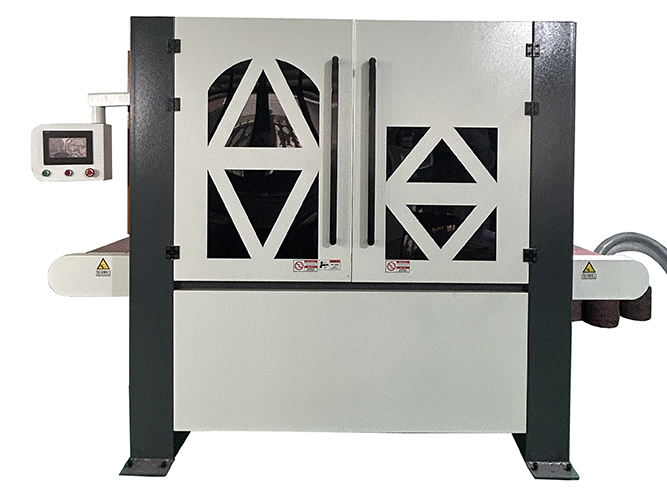

Principle of Universal Roller Brush Mechanism

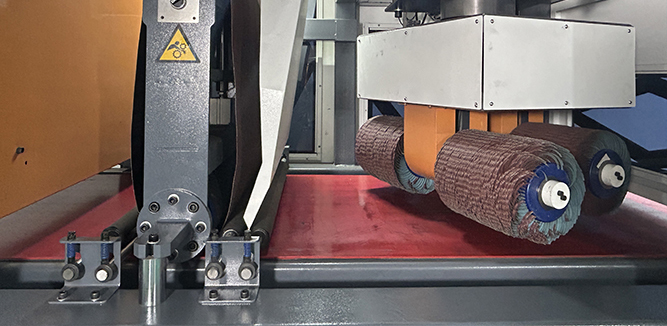

The deburring and rounding function is completed by the sanding wheel on the universal roller brush mechanism. The two pairs of sanding wheels of the universal roller brush mechanism are horizontally opposed, rotating in reverse at high speed, and rotating horizontally together under the action of the equipment revolution mechanism. The high-speed rotation of the sanding wheel generates centrifugal force to scrape and rub the contour edges of the workpiece. Combined with the overall revolution, the workpiece can achieve a universal and uniform chamfer at any position on the conveyor belt, making all contour edges of the product smooth and round, and obtaining a consistent R-angle.

Basic equipment parameters

1. Scope of equipment application: Suitable for laser cutting and stamping of flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, coated metal plates, rubber and plastic materials, etc.

2. Equipment function: Batch processing of surface pre grinding, wire drawing, polishing, scratch removal, deburring, chamfer rounding, and sharp edge removal for laser cutting, plate cutting, stamping cutting, water knife cutting, plasma cutting, and other workpiece surfaces.

3. Equipment combination: Wide sand belt+universal rolling brush single or multiple combination structures.
